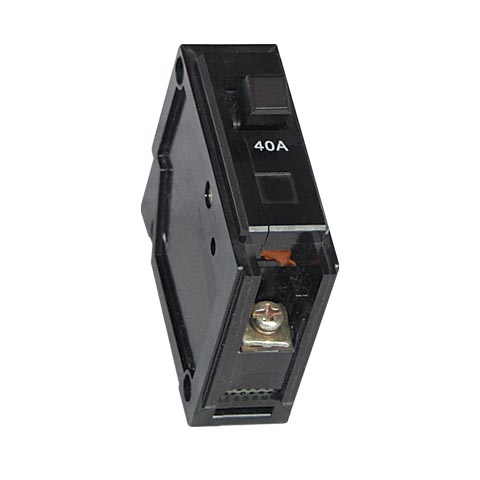

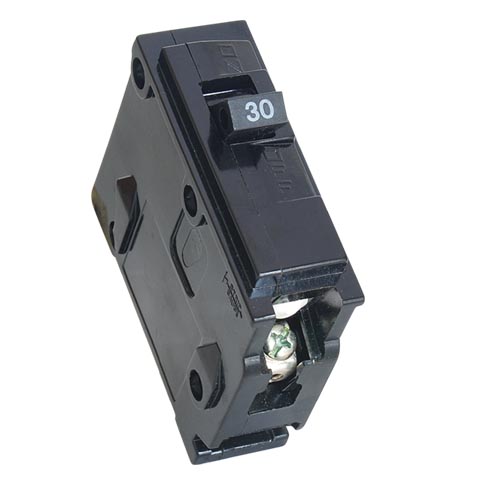

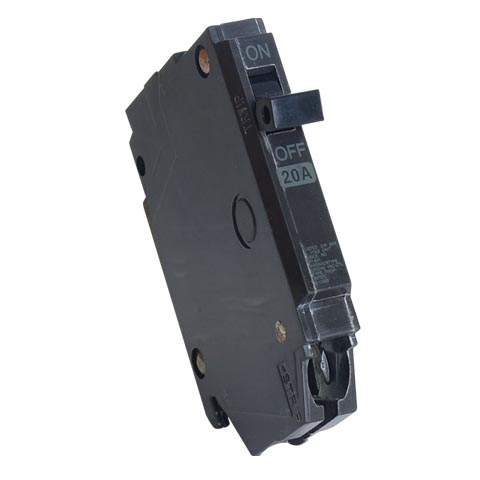

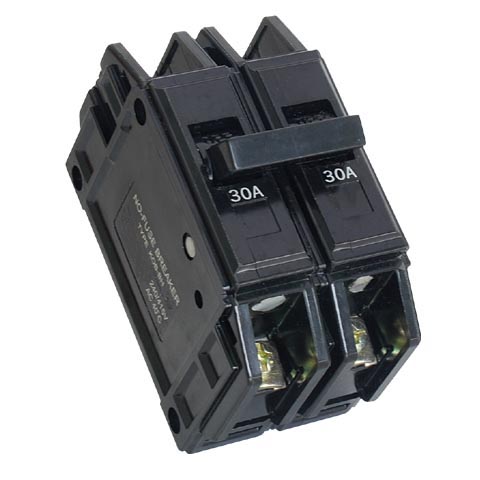

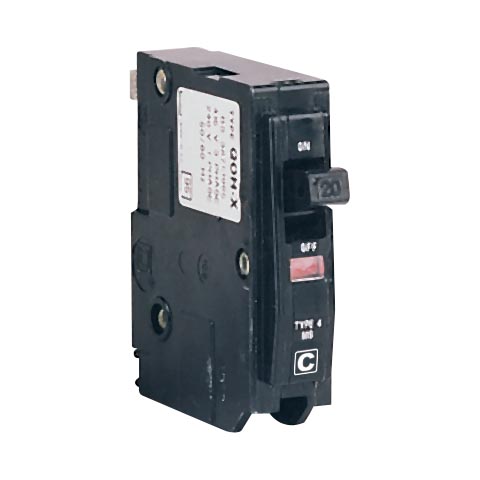

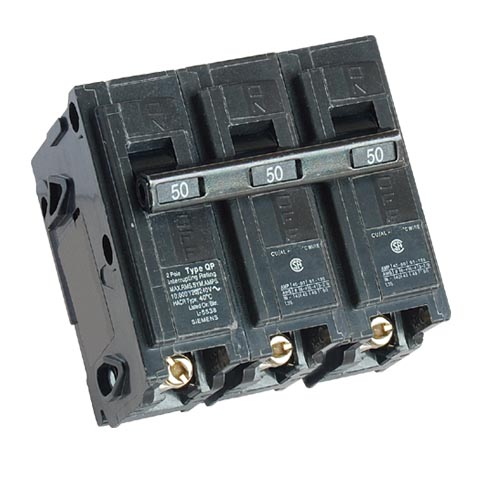

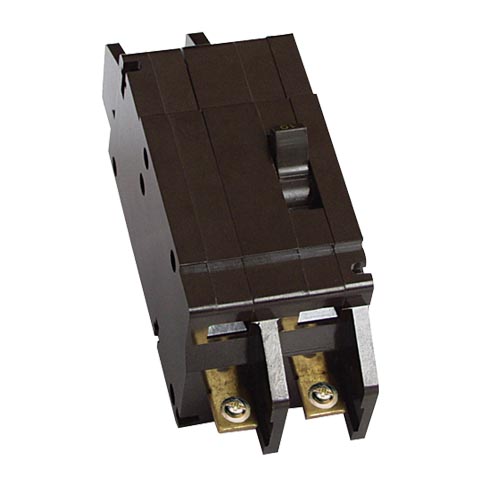

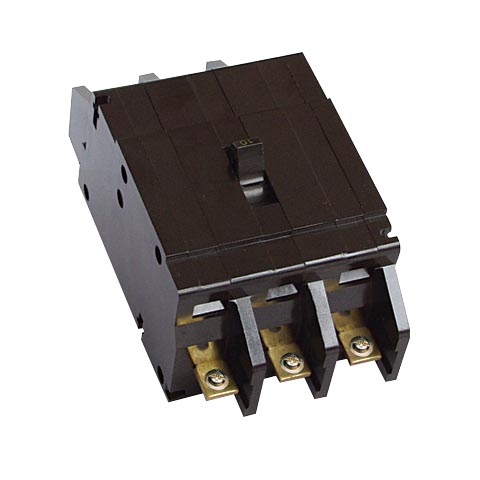

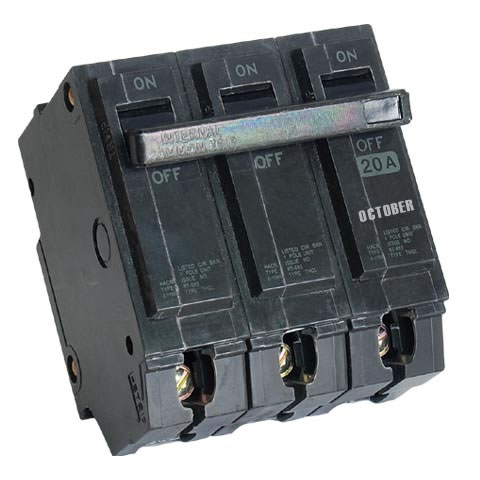

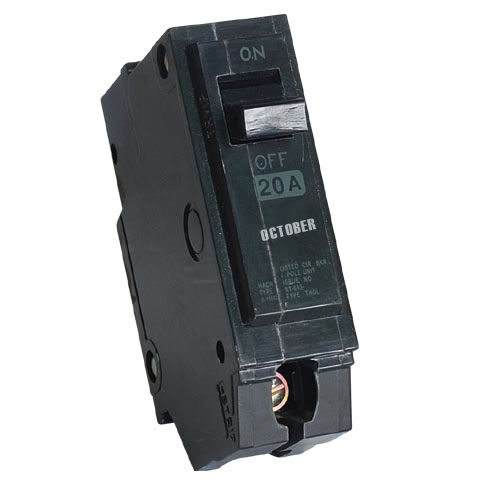

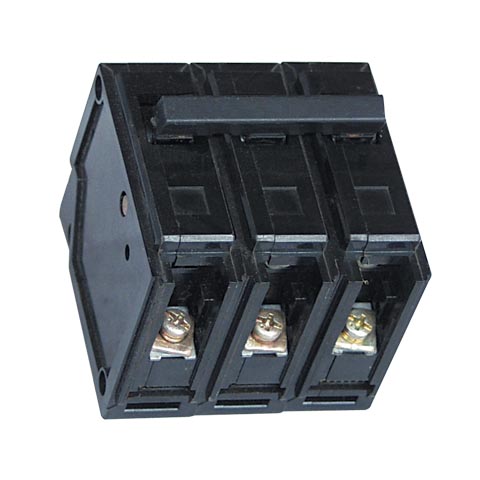

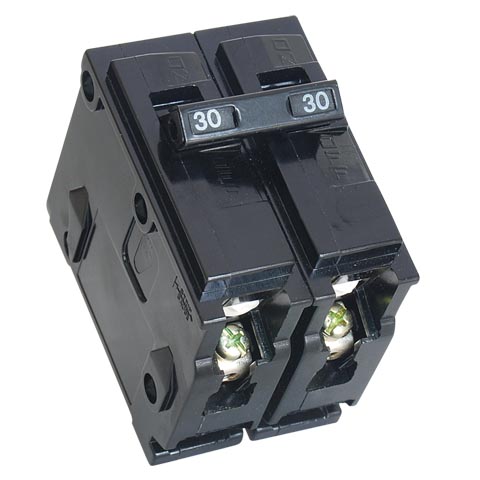

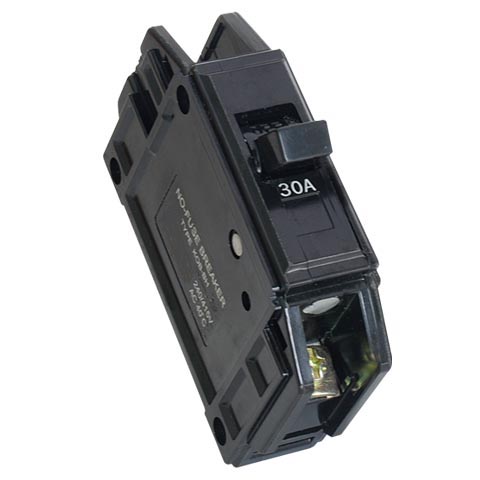

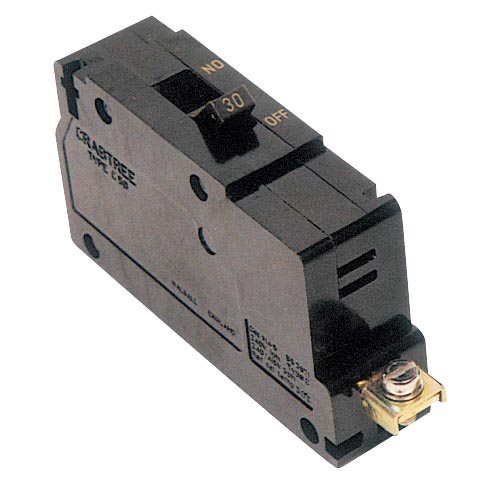

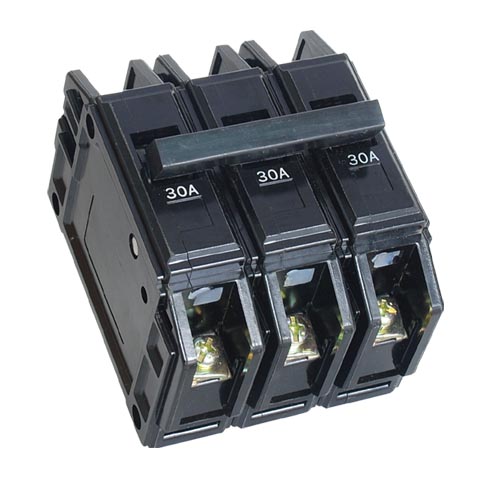

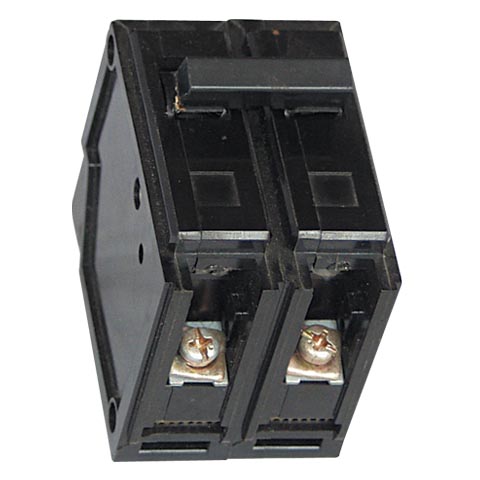

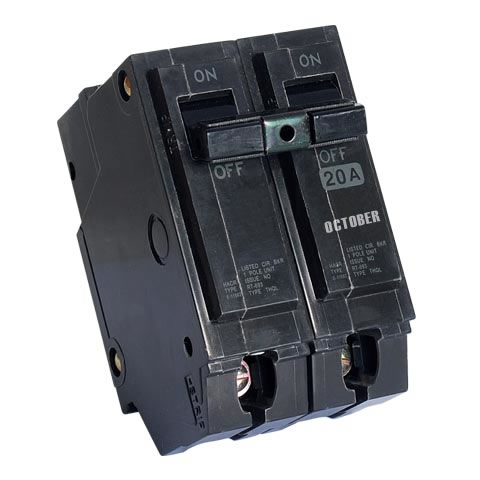

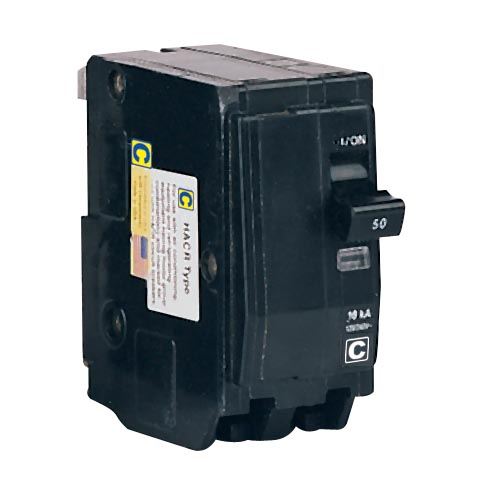

Mini moulded case circuit breaker
Application
The miniature circuit breaker applies to industrial, commerical, lighting and electric machine distribution system with AC415V, 50/60Hz, rated working current up to 100A to protect against overload and short circuit. The item is installed into plug-in type mounting base.
Specifications
| Number of Poles |
1P, 2P, 3P |
| Rated Current (A) |
6, 10, 16, 20, 25, 30, 40, 50, 63, 70, 100 |
| Rated Voltage (V) |
110/220 (1P), 240/415 (2P), 415 (3P) |
| Breaking Capacity (A) |
3000 |
| Electrical Life (Times) |
6000 |
| Mechanical Life (Times) |
20000 |
